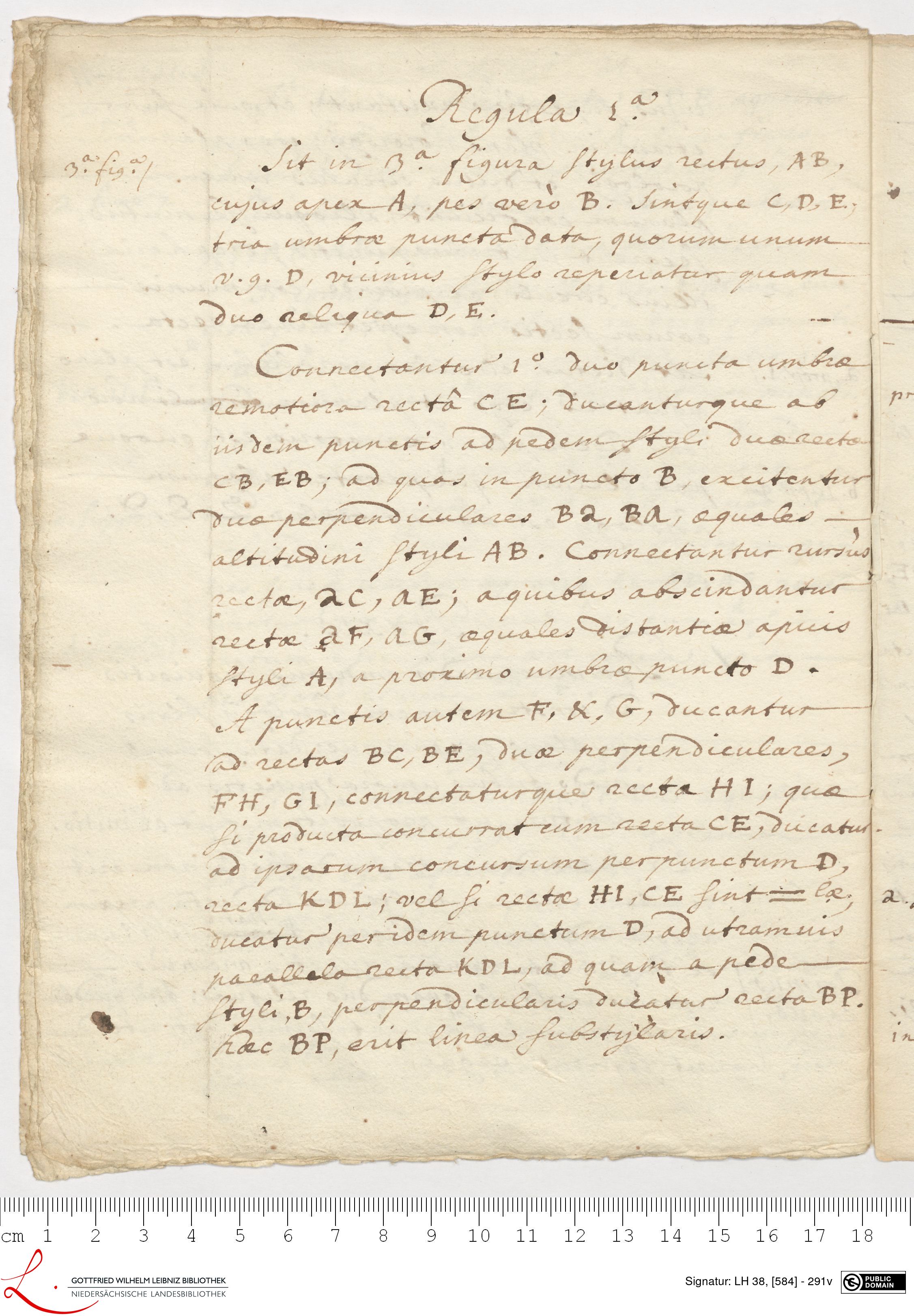

Leibniz-Handschriften zur Technica LH 38, fol. 291v

Machine transcription. Not an edition. Errors are expected: about 8% character error rate on Latin and French lines, higher on German. Mean line confidence on this page: 0.93.

Original at the GWLB · Page image · Annotations (IIIF) · Download text

The machine reads it as

  1. 3. figs.
  2. Regula 2.
  3. sit in 3. figura Stylus rectus, AP,
  4. cujus apex A, pes vero B. Sintque C, D, E.
  5. tria umbrae puincta data, quorum unum
  6. V. 9. D, vicinius stglo reperiatur quam
  7. duo reliqua D, F..
  8. Connectantur 1. duo punita umbre
  9. remotiora recta CE; du canturque ab
  10. iiidem punctis ad pedem Htyli duo recte
  11. CB, EB; ad quas in puneto B, excitentur
  12. due perpendiculares Ba, Ba, aequales
  13. altitudini stuer AB. Connectantur rurs
  14. rectae, 2C, aE; aguibus abscindantus
  15. rectae aF, aG, equales distantia apuis
  16. etyer A, a proximo umbrae pundto D.
  17. A punetis autem F, X, 6, ducantur
  18. ad rectas BC, BF, duae perpendiculares,
  19. FH, GI, connectatur que recta 1I; qua
  20. si producta concurrat cum recta CF, ducatur
  21. ad ipsarum concursum per punctum D
  22. recta KDL; vel si rectae HI, CF. sint eae
  23. ducatur per idem punctum D, ad utramuio
  24. parallala recta KDL, ad quam a pede
  25. styei, B, perpendicularis duratur eccta BF
  26. dec BP, erit linea suostireario.
  27. 2
